CK-M3D-3DUV-P
| Model | P10 | P10(Water cooling) | |

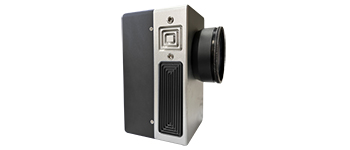

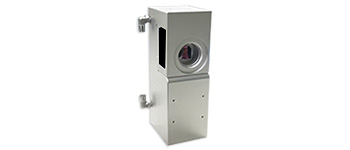

| Product image |
|
| |
| Light aperture | 10mm | 10mm | |
| Input spot | 7mm | 7mm | |
| XY axis speed | ≤7000mm/s | ≤7000mm/s | |
| Z axis dynamic speed | ≤3000mm/s | ≤3000mm/s | |
| Performance difference | Marking quality | Good | Good |
| Cooling mode | Natural cooling | Forced water cooling, can work with high load for a long time. | |
| Spot Quality | Fine and uniform, stable performance | ||
| Features | Curved surface,internal carving,relief,3D molding, etc. | ||
| Function | Plane marking | √ | √ |
| Curved surfaces Marking | √ | √ | |
| Model import marking | √ | √ | |
| High-low digit marking | √ | √ | |
| Internal carving,3D molding | √ | √ | |
| Cutting | √ | ||
| Catalog download |  Catalog download | Catalog download | |
| Demo video |
| ||
| |||
| Material: | UV field Lens | |||
| Laser power (W): | 3W / 5W | 5W / 7W / 8W / 10W | 10W / 20W above | |
| Field Lens range (mm) | 100*100 | √ | √ | |
| 200*200 | √ | √ | ||
| 300*300 | √ | √ | ||
| 400*400 | √ | |||
| 500*500 | √ | |||
| 600*600 | √ | |||
| Field Lens Specifications Correspondence Table of Focal Length Variable Range | ||
| Scan Field (mm) | Max & Min Focal Length (mm) | Virable Focal Length range (mm) |
| 70*70 【F100】 | 140~133 | 7 |
| 100*100 【F160】 | 217~204 | 13 |
| 150*150 【F210】 | 348~313 | 35 |
| 200*200 【F290】 | 432~373 | 59 |
| 300*300 【F420】 | 574~483 | 91 |
| Board card | PMC2e | UMC4 |
| Interface | PCIe | USB |
| Operational speed | Built-in DSP function, Marking operation speed more faster | Fast operation |
| Integrated performance | Excellent,especially suitable for complex models, strong stability | Easy assembly, expandable XY slide table |
| Support offline marking | NO | YES |
| Wiring definition | Catalog download | Catalog download |
| Software | MM3D Software(Preferred) | MarkingMate software + large format marking function | MarkingMate software + 2.5D marking function | |
| Application | Matching Scan head | √ | ||
| Large format marking | √ | √ | ||
| 3D molding | √ | |||
| Deep carving | √ | √ | ||
| Cutting | √ | |||
| Plane marking | √ | √ | √ | |
| High-low marking | √ | √ | ||
| Matching Scan head | Focus front scan head | √ | √ | √ |
| Focus after scan head | √ | √ | ||
| Slider control (extended function) | √ | √ | √ | |
Manual Catalog
| Name | File type | File size | Time | Click to Download |
| MM3D laser marking kit | MM3D kit catalog | 1.81MB | 2023.02.09 |  |
| MM3D User manual | 22.2MB | 2022.12.01 | | |
| PMC2e Board Card User manual | 4.42MB | 2023.01.10 | | |
| UMC4 board card user manual | 2.48MB | 2023.01.10 | | |
| Simple wiring manual for UMC4 board | 1.16MB | 2023.01.10 | |
