3D Laser Head Section
| Post Focus | |||||||
| Laser source | Model | Product image | Clear aperture | Input spot | XY axis speed | Z axis dynamic speed | Details |
| Fiber | FB-P10 |  | 10mm | 7mm | ≤7000mm/s | ≤3000mm/s |  |
| FB-P10 (Water cooler) |  | 10mm | 7mm | ≤7000mm/s | ≤3000mm/s | ||

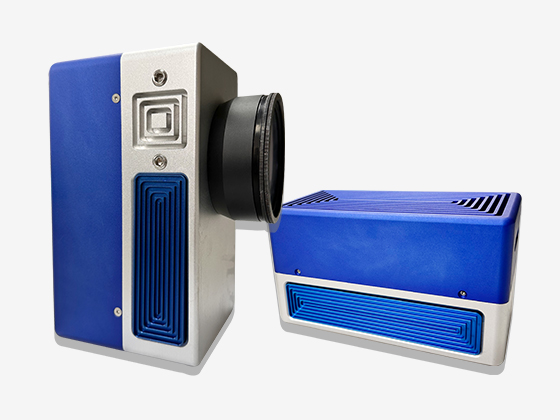

| FB-P10N |  | 10mm | 7mm | ≤7000mm/s | ≤3000mm/s | ||

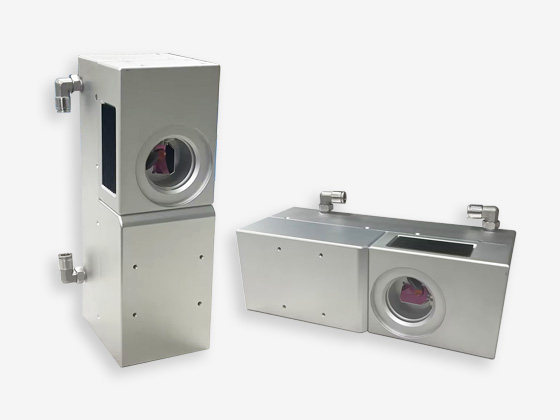

| FB-P14 |  | 14mm | 7mm | ≤2000mm/s | ≤2000mm/s | ||
| FB-P14 (Water cooler) |  | 14mm | 7mm | ≤2000mm/s | ≤2000mm/s | ||
| UV | UV-P10 |  | 10mm | 7mm | ≤7000mm/s | ≤3000mm/s | |
| UV-P10(Water cooler) |  | 10mm | 7mm | ≤7000mm/s | ≤3000mm/s | ||

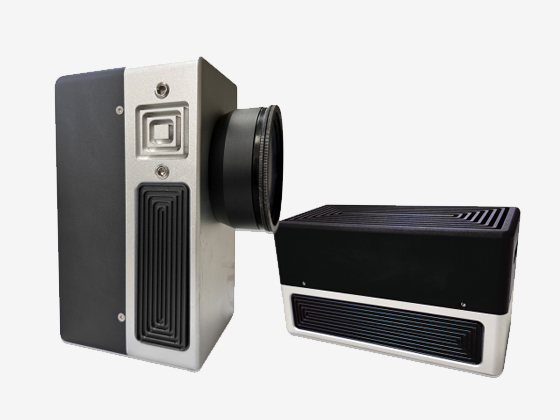

| UV-P10N |  | 10mm | 7mm | ≤7000mm/s | ≤3000mm/s | ||
| Green | GR-P10 |  | 10mm | 7mm | ≤7000mm/s | ≤3000mm/s | |
| GR-P10(Water cooler) | | 10mm | 7mm | ≤7000mm/s | ≤3000mm/s | ||
| GR-P14 |  | 14mm | 7mm | ≤2000mm/s | ≤2000mm/s | ||
| Prefocus | ||||||||
| Laser source | Fiber | UV | CO2 | |||||
| Model | FB-PR10 | FB-PR20 | FB-PR30 | UV-PR10 | CO2-PR16 | CO2-PR30 | ||
| Product image |  |  |  |  |  |  | ||
| Clear aperture | 10mm | 20mm | 30mm | 10mm | 16mm | 30mm | ||
| Input spot | 7mm | 7mm | 7mm | 7mm | ≤3mm | ≤7.5mm | ||
| XY axis speed | ≤7000mm/s | ≤1200mm/s | ≤800mm/s | ≤7000mm/s | ≤2800mm/s | ≤600mm/s | ||
| Z axis dynamic speed | ≤3000mm/s | ≤2000mm/s | ≤1200mm/s | ≤3000mm/s | ≤3000mm/s | ≤1500mm/s | ||
| Detail | | |||||||
