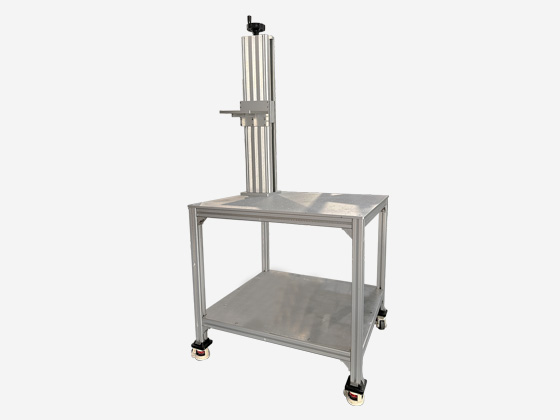

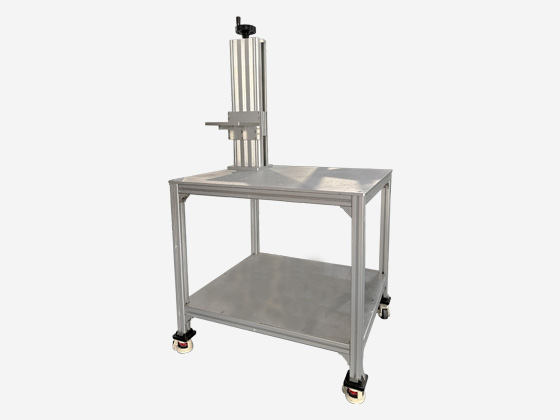

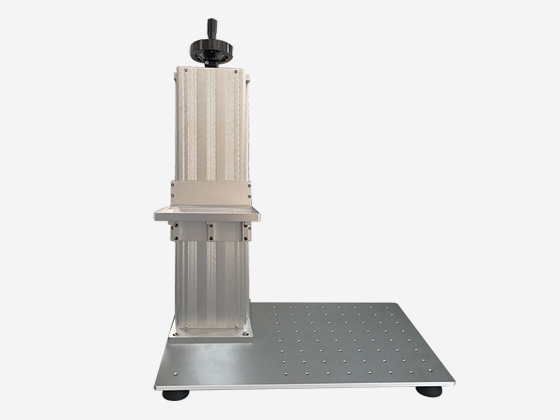

Vertical heavy lifting platform

CK-LPH-H120

Customer Service Hotline:headquarters:(+86) 0512-6635905Taiwan branch:(+886) 2-26917119
Consulting the mailbox:

Product Features

Precise linear sliding rail

Using two precise linear sliding rail, fixed on the lifter base frame with screws every 40mm to ensure that the central block does not sway during lifting, and does not tilt when loading.


Laser marked scale

The laser scale is double-sided laser marking, is clear and does not fall off. It is equipped with a precision slide block and a slide rail to prevent tilting and shaking.


precise nut

Equipped with a precision long copper nut, the lead screw is wear-resistant and long life.


Product Advantages

  • The laser scale is double-sided laser marking,unfading, and is equipped with scale pointer and clear scale.

  • The lead screw is equipped with precision copper nut, wear-resistance, long life and  tight occlusion.

  • Using two precise linear sliding rail, fixed on the lifter base frame with screws every 40mm to ensure that the central block does not sway during lifting, and does not tilt when loading.

  • Rotary supporting seat can rotate by360 degree,and users can adjust the angle according to  demand.The marking height and level position also can be adjusted. It can meet the marking requirements of more than 90% of work pieces.

  • The Forma wheel is mobile, flexible, durable, stable and long life, and the height of it is adjustable.

  • Using reinforced blocks to enhance the strength and rigidity of pillar lifter, and avoid pillar lifter distorting caused by uneven forces.


Specifications

Vertical heavy lifting platform
ModelCK-LPH-H120
LifterDimension1495*300*180mm
Weight21.4kg
Bottom plateDimension610*610*130mm
Weight9.3kg
Lifting range900~1360mm
Total weight30.7kg
Load capacity<50kg
ApplicationSuitable for CO2, UV, GN, fiber laser fixed


Packing

Vertical heavy lifting platform packing
Packing size1320*610*250mm2.png
Shipping weight约33kg
Shipping volume0.2m3
