CO2 large range laser marking machine (Glass tube)

Current Position: Home >> 3D Laser Marking Machine >> Large Range Laser Marking Machine >> CO2 large range laser marking machine (Glass tube)

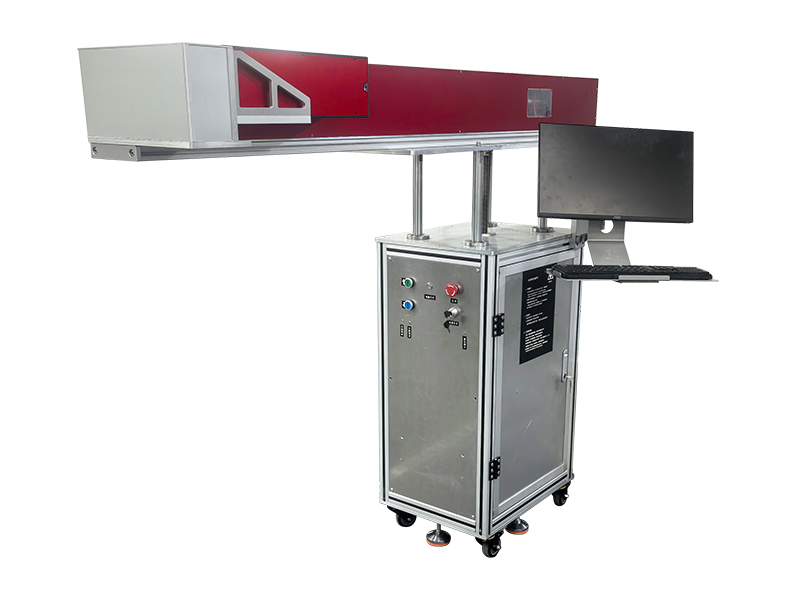

CO2-16 Spot
Large Range Laser Marking Machine

Marking range: 300-1200mm
Large range laser marking

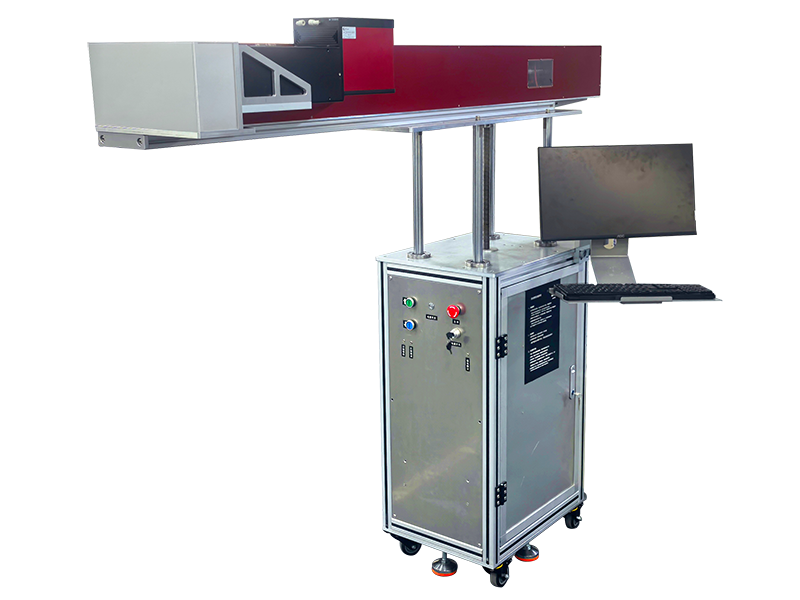

CO2-30 Spot
Large Range Laser Marking Machine

Marking range:300-1800mm
Super large format marking, scribing, cutting

Product Advantages

1. Super Large Format Marking
2. Large spot 3D galvanometer, the Max. marking range can reach 1800mm
1. Faster
2. CO2 16 spot+3D dynamic galvanometer, up to 20000mm/s in the range of 800*800mm.
  CO2 30 spot+3D dynamic galvanometer,Max. speed up to 15000mm/s
1. Glass tube laser
2. Optional glass tube laser, nice price with good stability
1. Fuselage advantages
2. Precision and dexterity, easy to move
1. MarkingMate + Large range function
2. Enable large-range marking function to realize 1-time marking on large-range materials.

Main Application Field

Application material:Suitable for wooden boxes, cartons, cloth, yoga mats, etc.

Applicable materials: wooden box

600*600*800mm wooden box marking
400*630mm wood carving
600*1200mm wooden box marking
800*1400mm wooden box marking

Applicable materials: Carton box

800*800mm carton marking
Serial No. marking
1700*600mm carton marking
1200*900mm carton marking

Applicable materials: Fabric

600*1100mm denim printing
500*700mm fabric printing
600*1700mm denim printing
800*1400mm fabric printing

Applicable materials: non-woven fabric, polyester, PVC, EVA, etc.

Floor mat pattern marking
Rectangular frame marking on floor mat
800*1700mm Yoga mat marking
800*1700mm Yoga mat marking

More applications

430mm Plastic bag scribe
500*300mm Film Cutting
Plastic bag scribe
600*600mm fabric cutting

Specification

16 spot - CO2 large range laser marking machine

Composition of the machine: Laser marking software + laser control card + 3D galvanometer + laser source + power supply + lifter

Model

CK-U-130 CO3D

Laser power

130W Glass tube (Water cooling)

Wavelength

10.60

Marking software

MarkingMate + Large range function

Marking control card

UMC4 (USB interface)

3D galvanometer

CO2-16 spot 3D galvanometer

Scanning speed

≤20000mm/s

Marking format (mm)

350*350

450*450

550*550

700*700

800*800

900*900

1000*1000

1200*1200

Focal length (mm)

450

522

720

900

1081

1250

1335

1750

Line width (mm)

0.25

0.35

0.5

0.55

0.6

0.75

0.36

Features

Large range marking

Extensible function

On-the-fly marking

User operation

Highly integrated computer, genuine windows system

Standard : Simplified Chinese version, support multilanguage customization

The length of the power to cable is 3~5m

I/O interface, foot switch, emergency switch, warning switch, etc

Working requirements

Power demand: 110V~240V，50/60Hz

Working temp: 0~45℃

Selection for Marking lifter

Type A ( Marking range: 300-800mm;Range of Z-axis : 85~145mm)

Type B ( Marking range: 500-1200mm;Range of Z-axis : 115~188mm)

Type C ( Marking range: 700-1700mm;Range of Z-axis : 135~230mm)

Accessory selection

Water chiller（Only for Water-cooling)

30 spot - CO2 large range laser marking machine
Composition of the machine: Laser marking software + laser control card + 3D galvanometer + laser source + power supply + lifter
Model	CK-U-70 CO3D
Laser power	130W Glass tube (Water cooling)
Wavelength	10.64um
Marking software	MarkingMate + Large range function
Marking control card	UMC4 (USB interface)
3D galvanometer	CO2-30 spot 3D galvanometer
Scanning speed	≤1500mm/s
Marking format (mm)	300*300	600*600	700*700	900*900	1100*1100	1700*1700
Focal length (mm)	385	810	1060	1410	1800	2290
Line width (mm)	0.36	0.45	0.49	0.54	0.62	0.85
Features	Super Large Format Marking, Scribe, Cutting
User operation	Highly integrated computer, genuine windows system
	Standard : Simplified Chinese version, support multilanguage customization
	The length of the power to cable is 3~5m
	I/O interface, foot switch, emergency switch, warning switch, etc
Working requirements	Power demand: 110V~240V，50/60Hz
	Working temp: 0~45℃
Selection for Marking lifter	Type A ( Marking range: 300-800mm;Range of Z-axis : 85~145mm)
	Type B ( Marking range: 500-1200mm;Range of Z-axis : 115~188mm)
	Type C ( Marking range: 700-1700mm;Range of Z-axis : 135~230mm)
Accessory selection	Water chiller（Only for Water-cooling)
