Product Application
  • Standard & non-standard surface marking

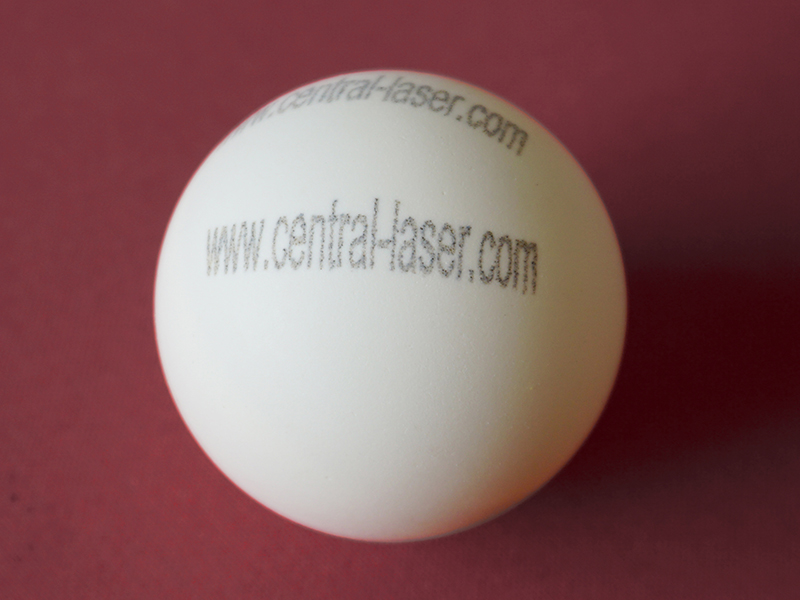

    Standard surface:For standard surfaces such as spherical and inclined surfaces, it can be directly marked

    Non-standard surface: Import the STL model, project or attach the marking content to the irregular surface for marking;

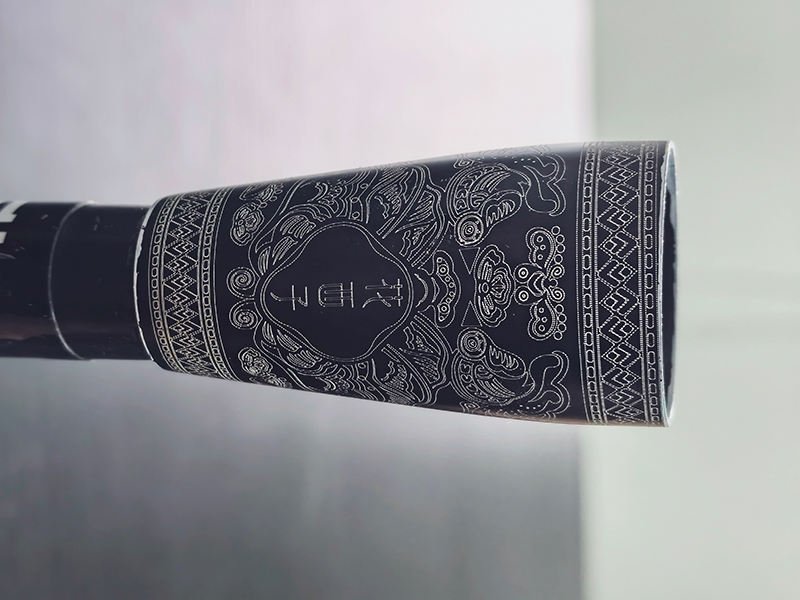

  • Rotary marking

    Support mark around workpiece rotate while marking

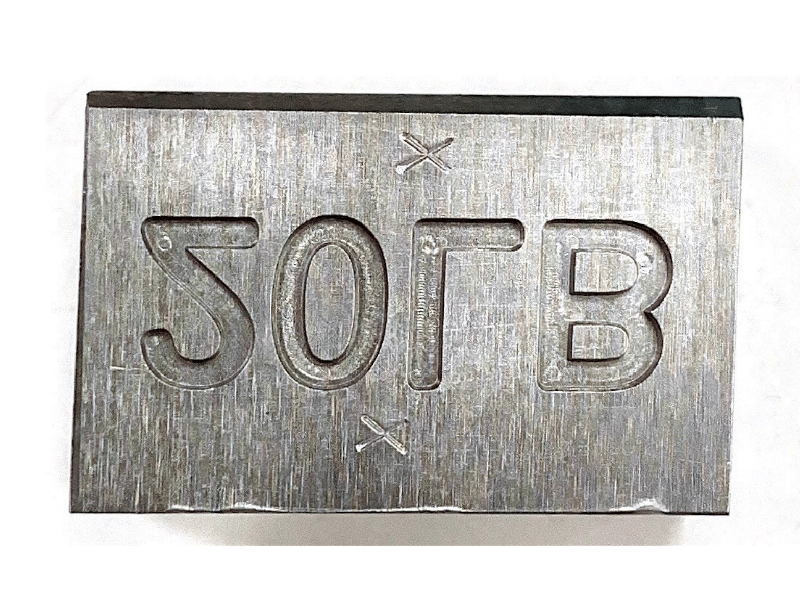

  • Deep carving/relief
    Carving depth: >3mm

    Breaking through the focal length limitation of 2D, the depth can easily reach more than 2mm+.

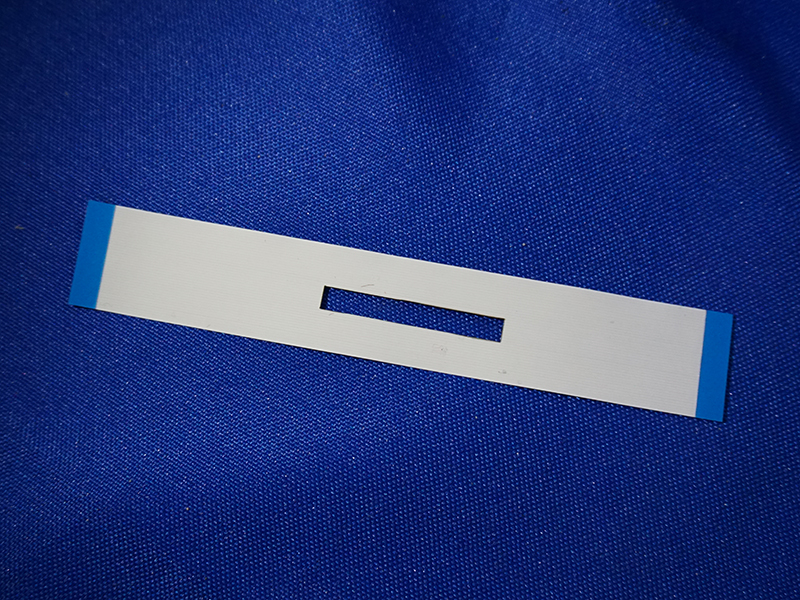

  • Cutting

    With a built-in dynamic Z in Galvo, the focal length can be auto-adjusted in cutting without manual involved.

Equipment Features

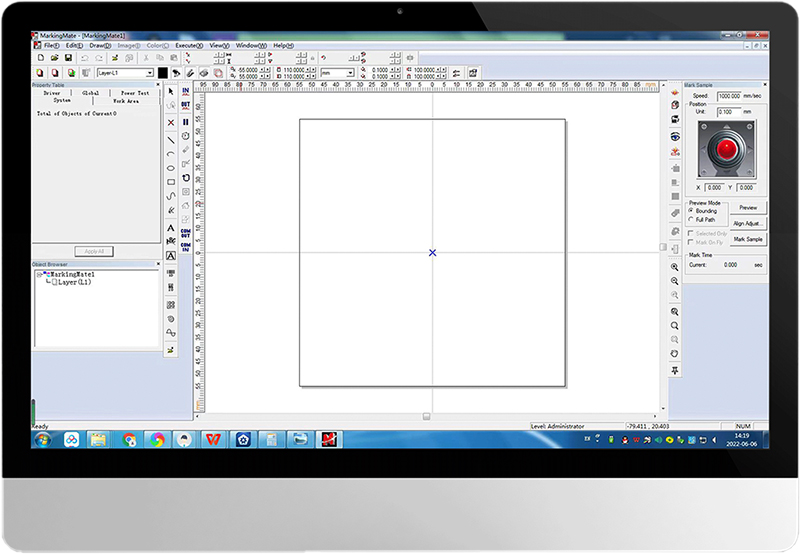

    2. MM3D software
      Markingmate’s powerful function can meet more than 90% of the marking application needs
      Provide diversified drawing functions, can be imported into a variety of format files and 1D and 2D bar code
      Automatic text source can be automatically accumulated numeric serial number, read system date from the text file
      Multiple languages to choose from, support multiple Microsoft operating systems

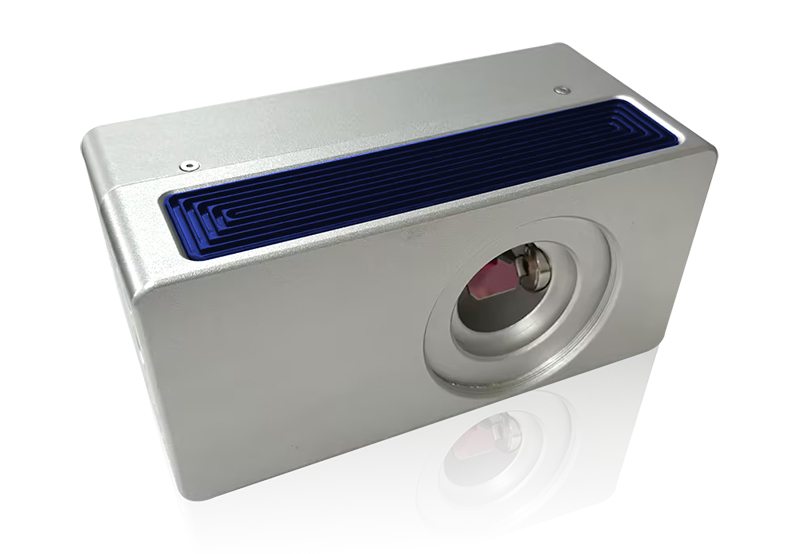

    2. Precision 3D galvanometer
      Using quartz lens material, effectively avoid power loss and field lens deformation
      Provide precise lattice method correction lens, calibration file, ensure no distortion marking
      The scanning speed is ≤7000mm/s, meeting the requirements of high-speed on-the-fly marking
Specification
Fiber Laser Marking Machine
Model CK-D-30 FB3D CK-D-60 FB3D CK-D-100 FB3D CK-D-200 FB3D
Laser power 30W 60W 100W 200W
Wavelength 1064±5nm 1064nm 1064nm 1064nm
Pulse width 90~110ns 2~500ns 2~500ns 2~500ns
Pulse energy 1~1.2mJ 2mJ 1.5mJ 1.5mJ
Frequency range 30~60KHz 1~4000KHz 1~4000KHz 1~4000KHz
Lens Ordinary Field Lens Quartz Field Lens Quartz Field Lens Quartz Field Lens
Marking speed ≤7000mm/s
Marking depth < 1mm
Dynamic Z speed ≤3000mm/s
Marking range Optional 70*70mm—600*600mm
User operation Highly integrated computer, genuine Windows 10 system, with MM3D software
International language version
Power supply and cable length 3~5m
I/O interface, foot switch, emergency switch, warning switch and other communication interfaces
Working requirements Electricity demand: 110v~240v, 50/60hz
Ambient temp.: 0~40℃
Cooling method: air cooling
Size/Weight Scanhead：201*111.4*101.5mm, Cabinet：85*65*145cm
Weight: 32KG Weight: 35KG Weight: 40KG Weight: 45KG
Optional Accessories Smoke purifier, rotating shaft
