CK-M3D-3DFB-P

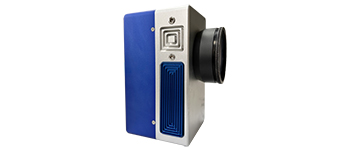

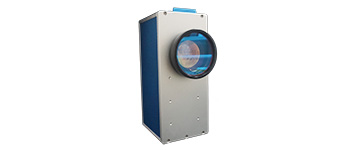

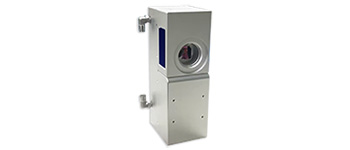

| Model | P10 | P10(Water cooling) | P10N | P14 | P14(Water cooling) | P20 | |
| Product image |
|
|  |
|  |  | |
| Light aperture | 10mm | 10mm | 14mm | 14mm | 14mm | 20mm | |
| Input spot | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm | |
| XY axis speed | ≤7000mm/s | ≤7000mm/s | ≤7000mm/s | ≤2000mm/s | ≤2000mm/s | ≤1500mm/s | |
| Z axis dynamic speed | ≤3000mm/s | ≤3000mm/s | ≤3000mm/s | ≤2000mm/s | ≤2000mm/s | ≤3000mm/s | |
| Performance difference | Marking quality | Good | Good | Good | Better | Better | Better |
| Cooling mode | Natural cooling | Forced water cooling, suitable for long-time cutting and carving work | Compact, precise, fast, and better suited for high-temperature | Natural heat dissipation, good heat dissipation | Forced water cooling, suitable for long-time cutting and carving work | Natural heat dissipation, good heat dissipation | |
| Spot Quality | Fine and uniform, stable performance | The light spot is finer, more uniform and stronger | Smallest spot, higher energy density | ||||
| Features | Irregular surfaces, model import marking, deep carving and cutting, etc. | Small spot, strong strength, more suitable for deep carving, cutting, etc | Enble engraving even on 300*300mm marking range | ||||
| Function | Plane marking | √ | √ | √ | √ | √ | √ |
| Curved surfaces Marking | √ | √ | √ | √ | √ | √ | |
| Model import marking | √ | √ | √ | √ | √ | √ | |
| High-low digit marking | √ | √ | √ | √ | √ | √ | |
| Deep carving, relief | √ | √ | √ | √ | √ | √ | |
| Cutting | √ | √ | √ | √ | √ | √ | |
| Catalog download |  Catalog download | ||||||
| Demo video |
| ||||||
| |||||||
| |||||||
| |||||||
| |||||||
| Material: | Ordinary field Lens (L) | Quartz field Lens (M) | Fused quartz field Lens (H) | |
| Laser power (W): | 20W / 30W | 50W ~ 200W | ≥100W | |
| Field Lens range (mm) | 100*100 | √ | √ | |
| 200*200 | √ | √ | ||
| 300*300 | √ | √ | ||
| 400*400 | √ | |||
| 500*500 | √ | |||
| 600*600 | √ | |||
| The f-theta lens selected table for different focal range with 10mm laser aperture | ||
| Scan Field (mm) | Max & Min Focal Length (mm) | Virable Focal Length range (mm) |
| 70*70 【F100】 | 92~85 | 7 |
| 100*100 【F160】 | 201~176 | 25 |
| 140*140 【F210】 | 272~225 | 47 |
| 200*200 【F290】 | 372~291 | 81 |
| 250*250 【F380】 | 475~346 | 129 |
| 300*300 【F420】 | 578~402 | 176 |
| 400*400 【F650】 | 912~640 | 272 |
| The f-theta lens selected table for different focal range with 14mm laser aperture | ||
| Scan Field (mm) | Max & Min Focal Length (mm) | Virable Focal Length range (mm) |
| 70*70 【F100】 | 113~109 | 4 |
| 110*110 【F160】 | 179.5~170.5 | 9 |
| 140*140 【F210】 | 236.5~221.5 | 15 |
| 200*200 【F290】 | 334~304 | 30 |
| 300*300 【F420】 | 487~424 | 63 |
| 400*400 【F580】 | 650~570 | 80 |
| 600*600 【F900】 | 921~771 | 150 |
| Board card | PMC2e | UMC4 |
| Interface | PCIe | USB |
| Operational speed | Built-in DSP function, Marking operation speed more faster | Fast operation |
| Integrated performance | Excellent,especially suitable for complex models, strong stability | Easy assembly, expandable XY slide table |
| Support offline marking | NO | YES |
| Fiber laser connection method | With IPG adapter cable | With IPG adapter board |
| Catalog download | Catalog download | Catalog download |
| Software | MM3D Software(Preferred) | MarkingMate software + large format marking function | MarkingMate software + 2.5D marking function | |
| Application | Curved and irregular surface marking | √ | ||
| Large format marking | √ | √ | ||
| 3D molding | √ | |||
| Deep carving | √ | √ | ||
| Cutting | √ | |||
| Plane marking | √ | √ | √ | |
| High-low marking | √ | √ | ||
| Matching Scan head | Focus front scan head | √ | √ | √ |
| Focus after scan head | √ | √ | ||
| Slider control (extended function) | √ | √ | √ | |
Manual Catalog
| Name | File type | File size | Time | Click to Download |
| MM3D laser marking kit | MM3D kit catalog | 1.81MB | 2023.02.09 |  |
| MM3D User manual | 22.2MB | 2022.12.01 | | |
| PMC2e Board Card User manual | 4.42MB | 2023.01.10 | | |
| UMC4 board card user manual | 2.48MB | 2023.01.10 | | |
| Simple wiring manual for UMC4 board | 1.16MB | 2023.01.10 | |
